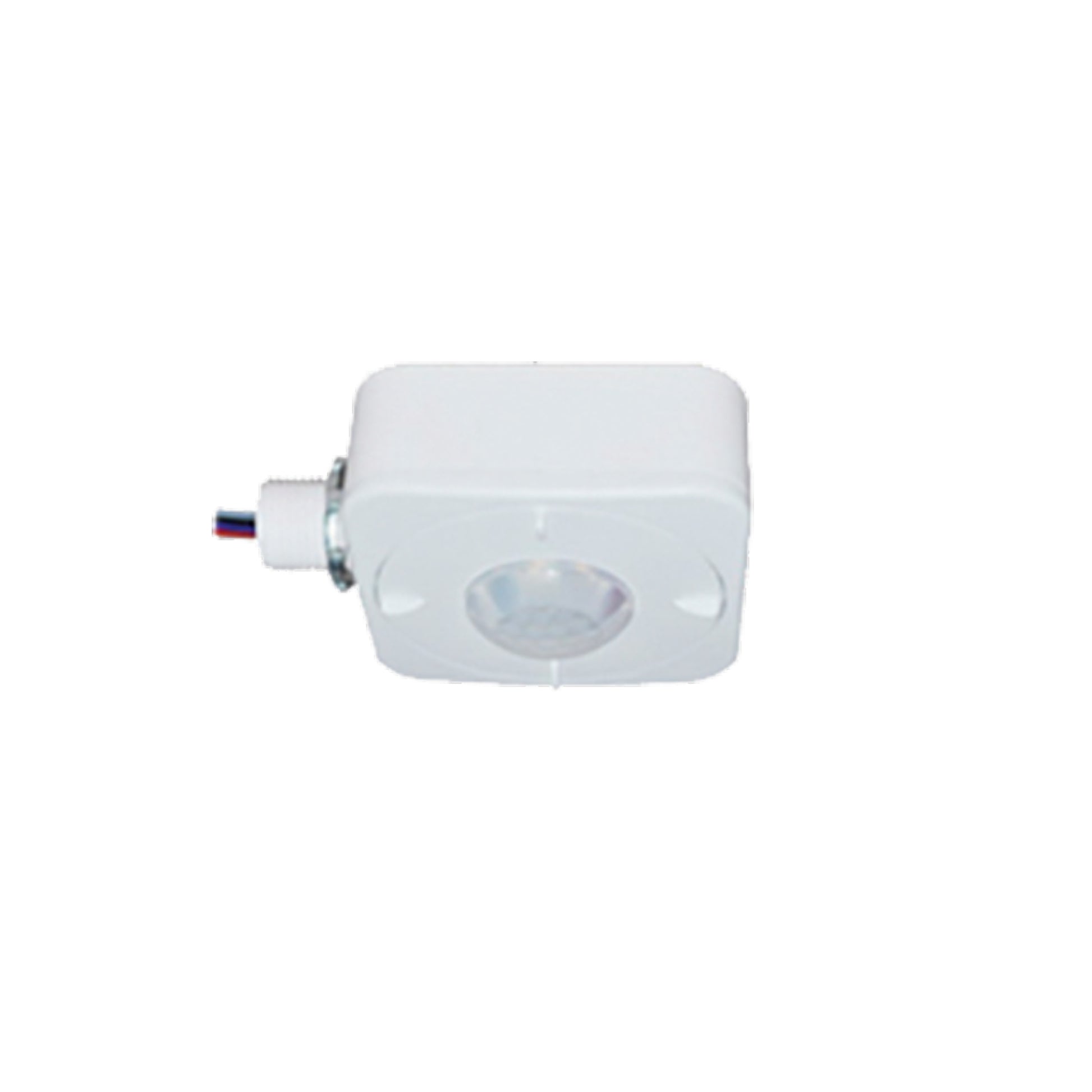

Passive Infrared Occupancy Motion Sensor

Passive Infrared Occupancy Motion Sensor

UL Listed

Options:

• Bi-Level
• Automatic On/Off Function

Specs:

• Input Voltage: 120-277V
• Max Load/Output: Resistive/Tungsten-600W@120V
  Electronic Ballast-800W@120V / 1200W@277V
• Mounting Height: Low Bay - 25ft max / High Bay - 40ft max
• Dimmable Function: 0-10V
• Detection Radius: 30 ft
• Detection Angle: 360º
• Operating Temperature: from -40ºF to 167ºF
• IP Rating: IP20

Maximize energy efficiency in commercial and industrial spaces with our Passive Infrared Occupancy Sensor, specifically designed for areas such as warehouses, distribution centers, parking garages, and public areas. This line voltage sensor operates seamlessly with no need for an additional power pack, utilizing passive infrared technology to detect motion, making it ideal for areas with stable ventilation and clear lines of sight. The high bay version supports mounting heights up to 40 ft, and the low bay version is optimal for heights of 25 ft or less, with both offering 360˚ coverage.
